70MHz off season WSPR




80m VK2DX  3505  599  tonight easy worked in EU pile low power and " improved"  vertical.
I had to take the mast down anyway the rotor was struck and a 40m bnd top load came down in the Christmas storm.

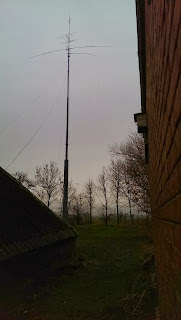

 I used a fiber fishing rod  fitted in a PVC tube as 4m side arm  to keep the 80m vertical wire as clear as possible from the main metal mast.
The dipole is 9m50  long at 22m a.g. for reference.
recording of VK2DX
http://www.qsl.net/pa0oos/recall2013/vk2dx_80.mp3



40m DP1POL  Neumayer Antarctica   soms WSPR 10m  actief
http://www.qsl.net/pa0oos/recall2013/dp1pol_40.mp3
