NAC 6 November 144MHz

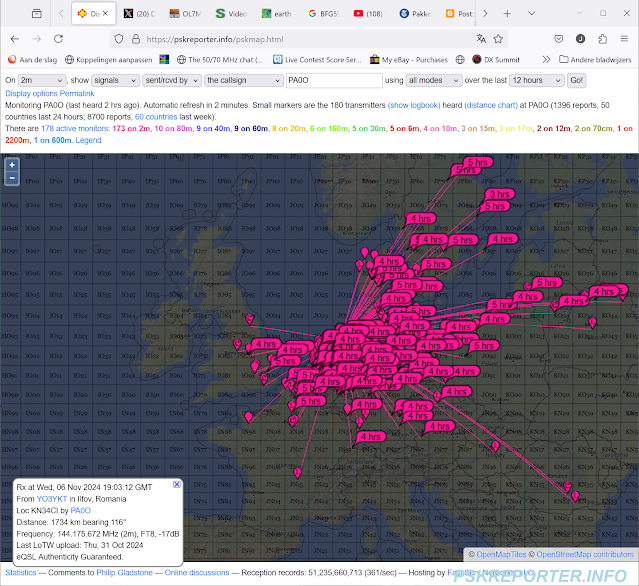

 Again good tropo   and a long m.s. FT8  burst 1734km  to YO3YKT this burst was 1903Z and noticed by more local hams must have been a bigger meteor, that is the advantage of FT8 mode events like that will be noticed with so many observers at 144.174   Strange enough the 144.174 was overloaded with signals but no one went to FT4 or an alternative frequency as this is the procedure at 6m and HF.

VHF UHF amateurs in general are old-fashioned  in operating technics ..

Also rarely PC logging or LOTW  is used by VHF/UHF hams .. but FT8 yes most do ..

Everybody likes doing  CW the real mode  but in real activity events ... not...

best 2-way EW6FS 1334km




Red =6m pink 28MHz

And at 432 MHz  SM0KAK FT8/ CW    SM3LBN  -6 did not hear my 25W / 23ele signal

40W -3dB cable estimated at 432 MHz


  FT8 SP2WRH CW SP2HMR
