Es season going to end

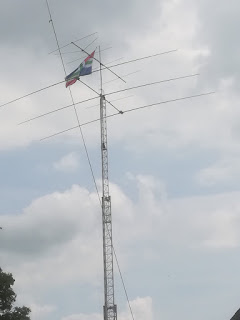

In the end i decided to place a 6m antenna 5 ele ( DK7ZB design) i had to skip the 2 ele extension to keep it easy catched  the next Friday morning huge JA opening and a smaller Saturday the Es is already leaving us and going south

Comments

PE4BAS, Bas said…
Mooie vlag in de mast hi. 73, Bas
