TR4W in the UKRAINIANDX contest

In order to find some solution to the logging problems
I plugged a faster i7  W7 Laptop to thewireless keyboard and the 22" TFT above my radio operating position.
17 CW QSO's in the Ukrainian contest went fine.
N1MM was fast respondingno delays  in T/R confirm messages.
While just having enteredW9EWZ. QSO nr. 18 The frequency display/band ruler went crazy again and whiped out W9EWZ from the input field..

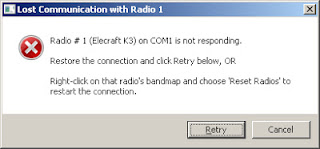

the msgbox  stops the polling  click on retry starts it again.
Why not just continue polling and showing an Offline sign without the need of manual resetting ?


This time even the reset interface did not recover the CAT connection
I am having a rs232 break out monitor to watch the data over the CAT connection  still the K3 was sending data strings to the PC  in responseto the N1MM polling  the K3 does not send data without being asked for by a command.
But the data to N1MM seems  to be  scrambled  since  very odd frequencies are displayed like on the picture above.

Breakout monito…
