Baofeng (accu) eliminator


Voor in de auto ik was van plan om een adapter te maken van een defect accuutje voor de Baofeng
Maar ze  zijn ook te koop  vanaf c.a. 6€ in China
In Nederland wel veel duurder natuurlijk.
Maar deze accu "ELIMINATOR"  werkt slechts een paar minuten dan zakt de  8V in en verdwijn je van de  repeater in geruis en gebrom.
Ik kan nog ruilen maar werken die Chinese dingen wel?
wat erin zit weet ik niet maar het moet haast wel een switched mode regelaar zijn ivm met rendament
het plastic doosje zou gaan smelten  met een conventionele linear regelaar.
Afbeeldingen op i-net tonen een 3 poot regelaar op minuscuul aluminium plaatje.
Van de auto boordspanning  c.a. 14V naar 8V bij 1A  is met een linear regelaar  6W warmte
Geschat 1A bij 5Watt rf uit 430MHz

Ik zou zelf even een regelaar maken uit de junkbox.
een UA7808 of LM317  3stuks/1€  had ik net even niet liggen
Maar lukte niet een redelijk stabiele 8V te maken.  Bij 7.5 OHm belasting zakt de spanning naar 7.3V
Hieronder de laatste test

volgens schema van Texas Instruments
 Ca 1 A is de te verwachten stroom van de Baofeng UV5R in TX mode.

De power tor word snel heet met 6Watt dissipatie   heeft zeker een goede koeling nodig
Ik kwam er achter dat het nog niet zo eenvoudig is met  een emitter volger

nou ja weer wat geleerd.
Dan word het toch een switched mode voeding.
Een module met de LM2596  is nog geen 2€  bij   o.a. Mini in the box
thuis bezorgd kan even duren.
Het pakje kan zoek raken of de invoer inquisitie kan het pakje beboeten met invoer en "afhandelings" kosten met daarover weer BTW natuurlijk.  Geheel naar willekeur zoals vroeger bij de grens kontrole.
Maar daarvoor is  een verzekering afgesloten.
Leuker kunnen we het niet maken.
Tot zolang maar met het 2e accupack dat wel goed is verder.

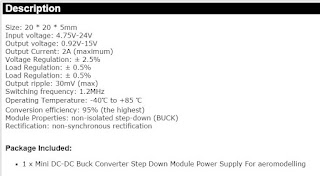

het kan nog kleiner ook  2 x 2 x 0.5 cm
 Deze heeft  maar liefst 1.2MHz  schakel frequentie   past natuurlijk  beter in de UV cassette
1$   Ebay  niet te geloven. Bij ons is een postzegel al duurder.






LM2596 controller 2€
